| Material: | Low carbon steel rod Q195 or Q235 |
| Feature: | Beautiful appearance, installation is easy |
| Application: | Airports, Roads, Railways |

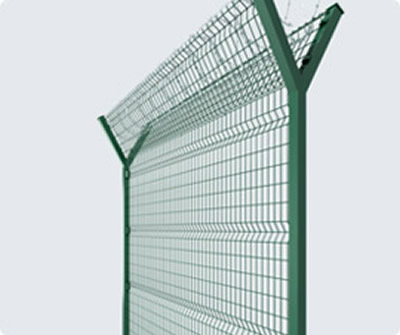

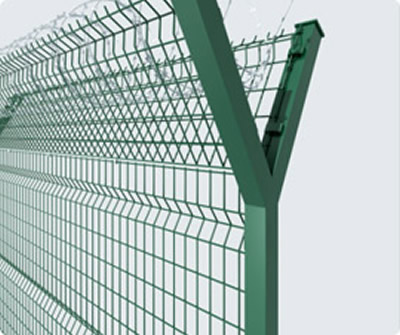

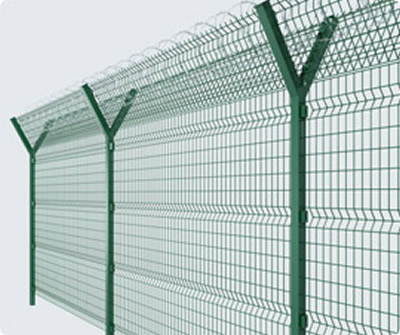

Airport Fence is also known as "Y-Shape security fence". It is strengthened by the v-shaped support arm and welded mesh, security fittings and hot-dip galvanized concertina razor wire to form a high level of strength and security. Airport Fence is widely used in airports, military bases and other high security sites.

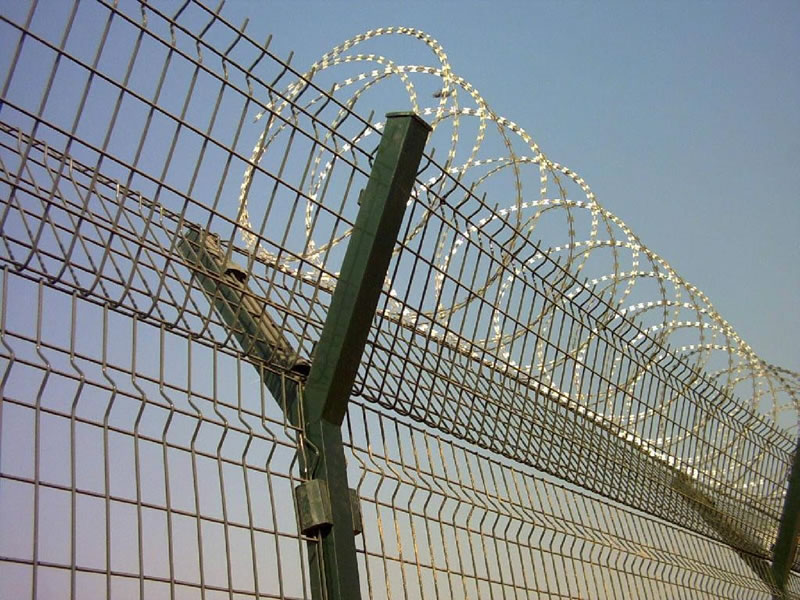

On top of the airport fence is concertina razor wire which acts as a good enhanced safety barrier. By galvanization, polyester powder coating, airport fence has very good resistance to aging. It has sun-resistant, corrosion-resistant characteristics. Airport Fence is good looking in appearance. It can have various colors and it's not only a fencing application but a perimeter decoration. Due to its high safety, good anti-climbing ability, mesh connections using special SBS tight fastener, it effectively prevent cases of human destructive disassembly. The four horizontal bend makes the mesh strength increased significantly.
Airport Fence has a wide range of application scenarios like airports, roads, railways and bridges on either side of the isolation area, ports, docks, parks, lawns, municipal construction, zoo, hotels, supermarkets, entertainment, etc.

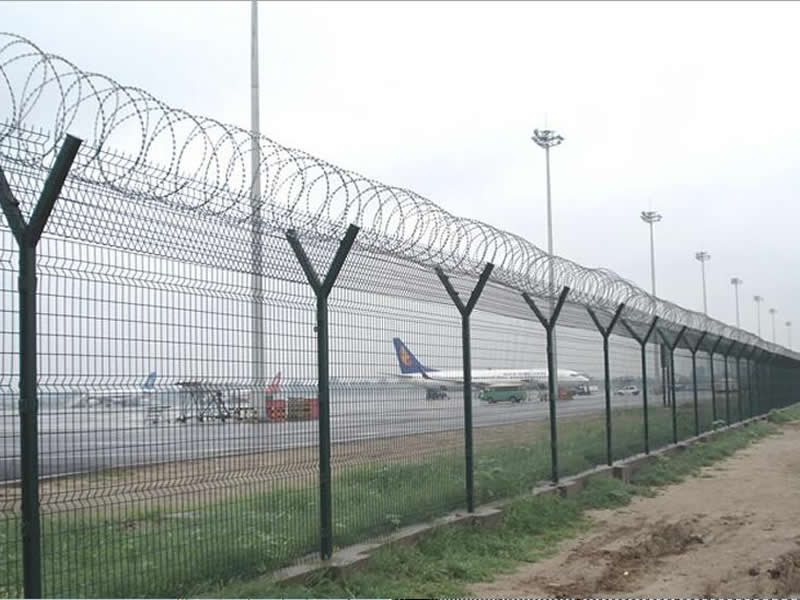

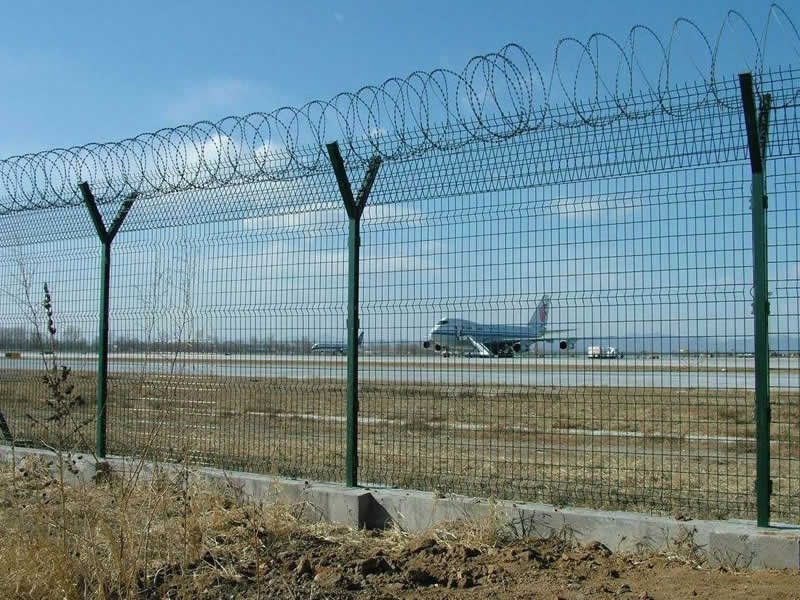

Airport fence at the airport plays an important role in the airport construction. Airport fence is mainly used for the security and performance of the airport.
Specification:
For panels:
Height: 2.03m, 2.33m, 2.63m.
Width: 2.0m, 2.5m.
Wire thickness: 4.0mm, 4.5mm, 5.0mm
Spacing between horizontal wire: 100mm, 150mm.
Spacing between vertical wire: 50mm, 55mm.
Reforced folds: 100mm.
Finishing: Glavnized and electrostatic polyester powder coating
For post
Square post,
Size: 60mmx60mm,
Thickness: 2.0mm, 2.5mm, 3.0mm
Height: 3.2m, 3.7, 4.3m
Finishing: Glavnized and electrostatic polyester powder coating
For Concertina razor wire
Type: BTO-22
Core wire: 2.5mm
Blade: 0.5mm
Roll diameter: 500mm, 600mm, 700mm
Finishing: Hot dipped galvanized
| Panel | Mesh | Wire Thickness | Surface Treatment | Panel Width | Panel Height | Fence Height |
| Big Panel | 50x100mm 55x100mm | 4.00mm 4.50mm 5.00mm | Gal.+ PVC coated | 2.50m 3.00m | 2000mm | 2700mm |
| 2300mm | 3200mm | |||||
| 2600mm | 3700mm | |||||
| 530mm | 2700mm | |||||
| V panel | 630mm | 3200mm | ||||
| 730mm | 3700mm |
Y post
| Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
| 60x60mm | 2.0mm 2.5mm | Gal.+ PVC coated | 2700mm I + 530mm V | Available On request | Plastic or Metal |
| 3100mm I + 630mm V | |||||
| 3600mm I + 730mm V |
Top concertina razor wire
| Type | Core wire / Blade thickness | Surface Treatment | Length | Outside diameter | Clips |
| BTO-22 | 2.5/0.5mm | Hot dipped galvanized | 8-10m/roll | 500mm | 3 lines |
| 600mm | |||||
| 700mm |
Product Features:
High security.
10-Year limited warranty.
Galvanized steel components.
Suitable to all kinds of surrounding.
Panels mounted inside post.
Durable polyester powder coating finish.
