| Material: | Low carbon steel wire |
| Feature: | Anti-climb, Anti-cut |
| Application: | Prison, sport pitches |
PVC Powder Coated 358 Mesh Fence Panel
Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 guage) also known as"prison mesh"or anti-climb fence,is a special fencing panel, we can make in our city, this production offers the best value for performance, durability and appearance, "358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric.

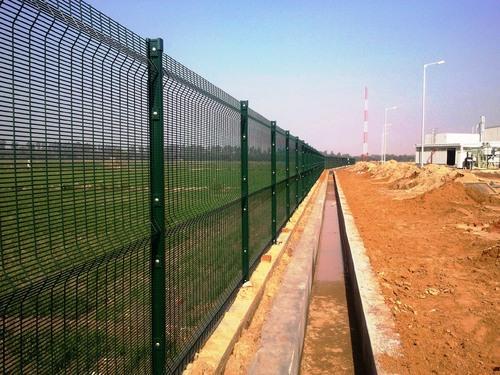

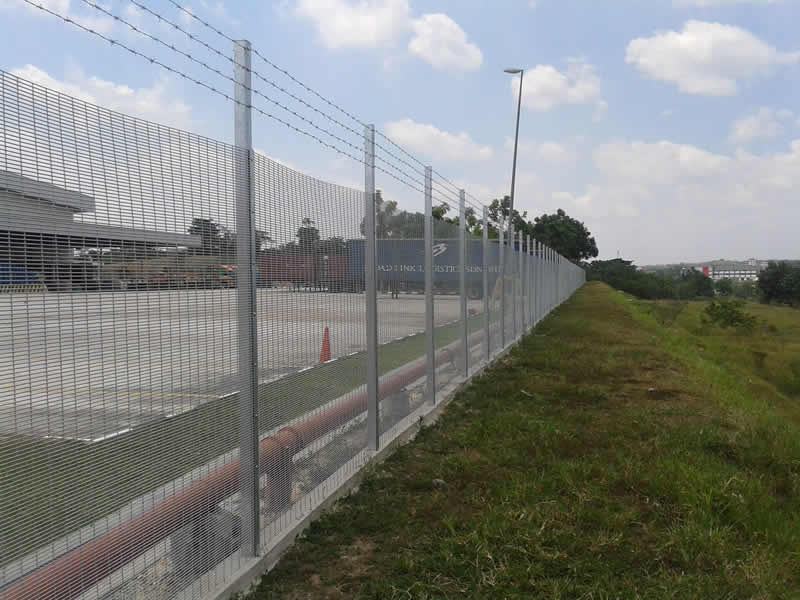

358 wire mesh fence is a professional structure designed for high security environments, combined with an steel framework, coated with heavy zinc or RAL color powder coating.
Double Garden Fence Panels/ Double Loop Wire Mesh Fence/ Twin Frame Wire Mesh
Double wire mesh fence is also named as double rod fence panel or double rod gratings (grid fencing). Double wire fencing is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sport pitches where a strong mesh fencing system is required.
| Panels | Post | ||||
| Fence | Panel Size | Post Size | Post Height | Total Number of Fixings | |
| Height | Height/Width | Lenght/Width/Thickness | Inters- 1 clemp | Corners-2 clamp | |
| m | mm | mm | mm | ||
| 2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
| 2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
| 3.0 | 2400 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
| 3.3 | 2997 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
| 3.6 | 3302 x 2515 | 100x60x3mm | 4500 | 13 | 26 |
| 3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 13 | 26 |
| 4.2 | 4204 x 2515 | 100x100x4mm | 5200 | 15 | 30 |
| 4.5 | 4496 x 2515 | 100x100x5mm | 5500 | 16 | 32 |
| 5.2 | 5207 x 2515 | 120x120x5mm | 6200 | 18 | 36 |
358 mesh fence Features:
• Anti-climbing: more small openings, no toe or finger holds.
• Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
• High strength welded at each intersection.
• Durable: covering Galfan and polymer powder coating ensure a long service life.
• Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Finish
Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Colours: Standard colours are Green RAL6005, Black RAL9005 and Yellow RAL1021.
Other colours are available on request
FENCE POSTS AND INSTALLATION

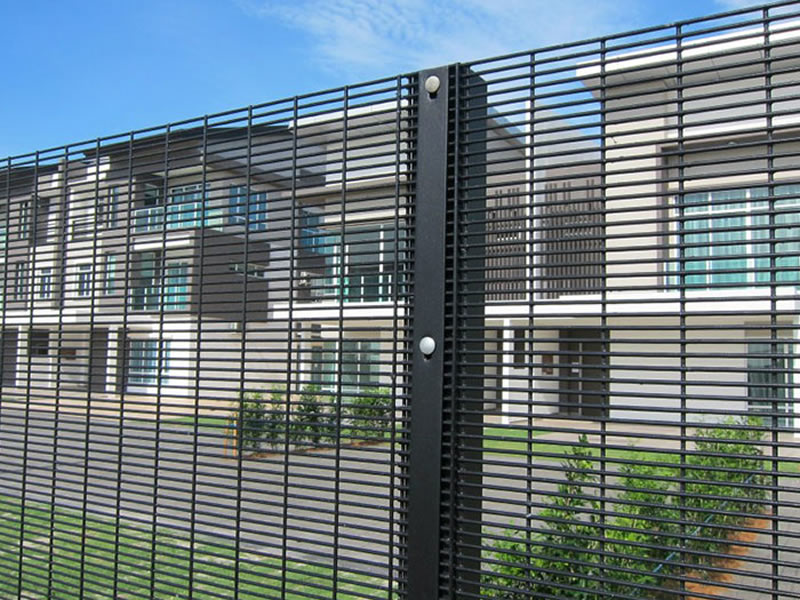

Installation of Mesh Panels to Posts:
The mesh panels are attached to tubular ( pipe ) steel posts of 1-1/2"*2-3/8" OR 1-1/2"*3". The panels can be attached to the face of the posts or in between posts by using of brackets.
80x60x2.5mm RHS intermediate posts pitched at 2.525m centres 80x80x3mm RHS corner posts.
Utilise steel fixing brackets to secure panels to the front face of the posts.
Panels are butt jointed at each post for securing with double-drilled fixing brackets, posts are fitted with twin rows of M8 threaded inserts.
