| Material: | Galvanized iron, Carbon steel wire |
| Feature: | Durable, Permeable, Economy, Flexible |
| Application: | Protection of road |
Gabion Basket

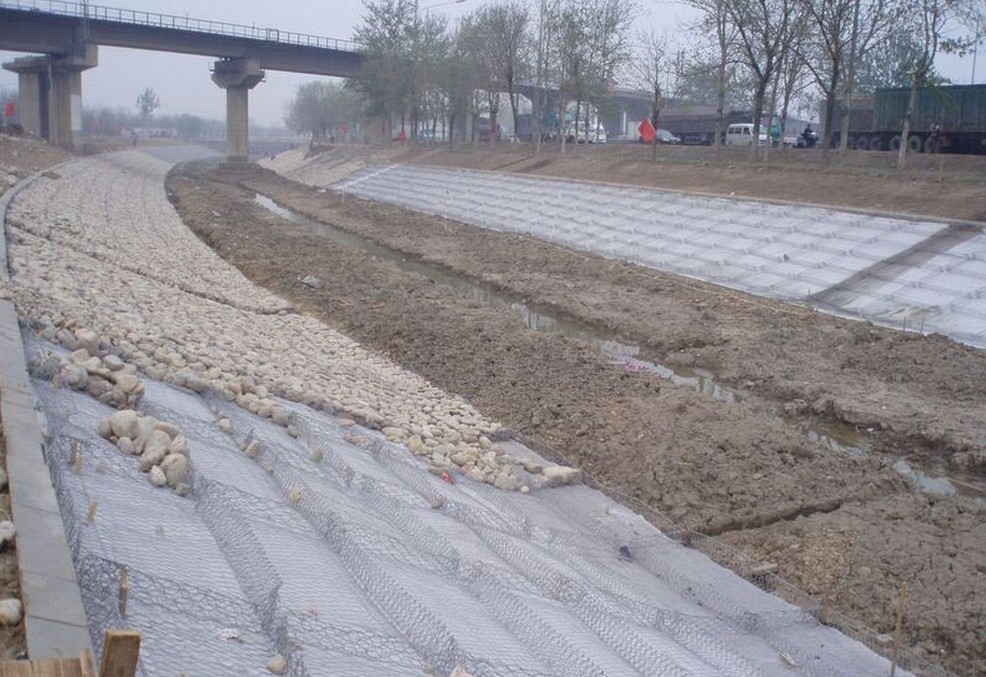

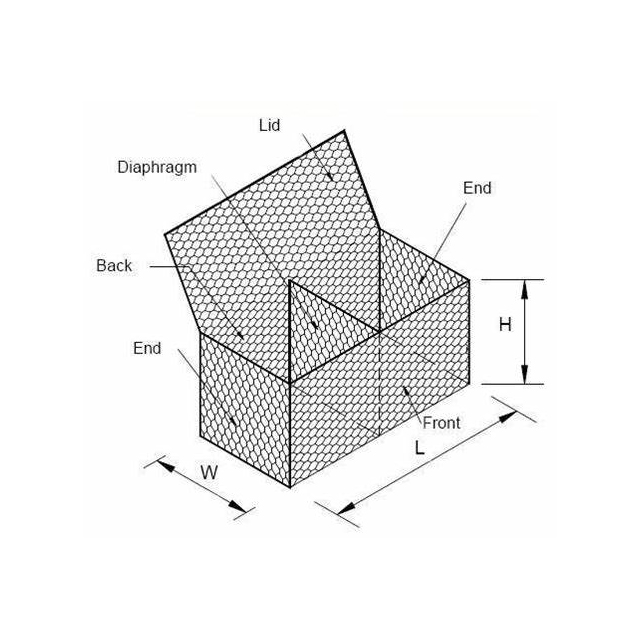

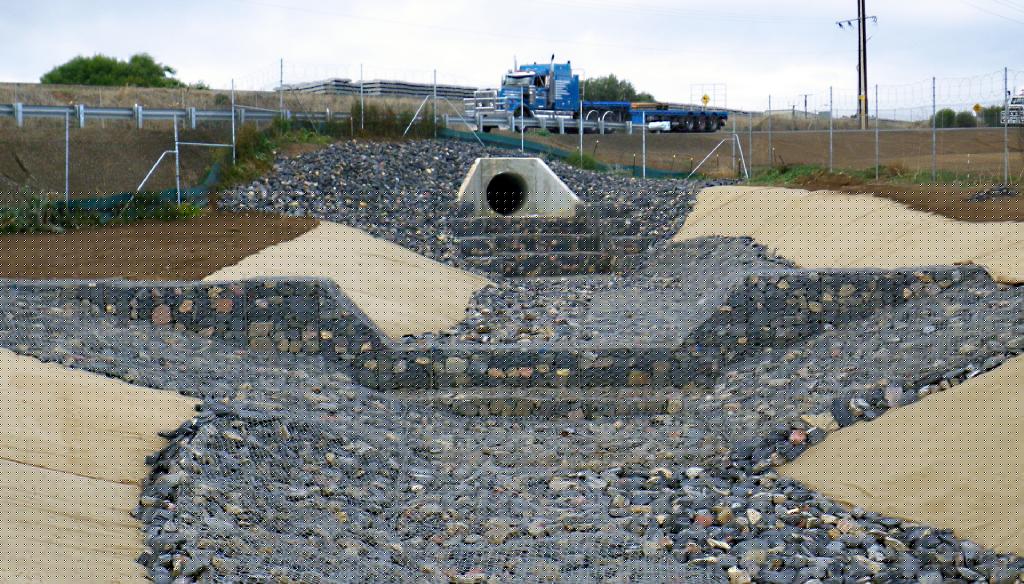

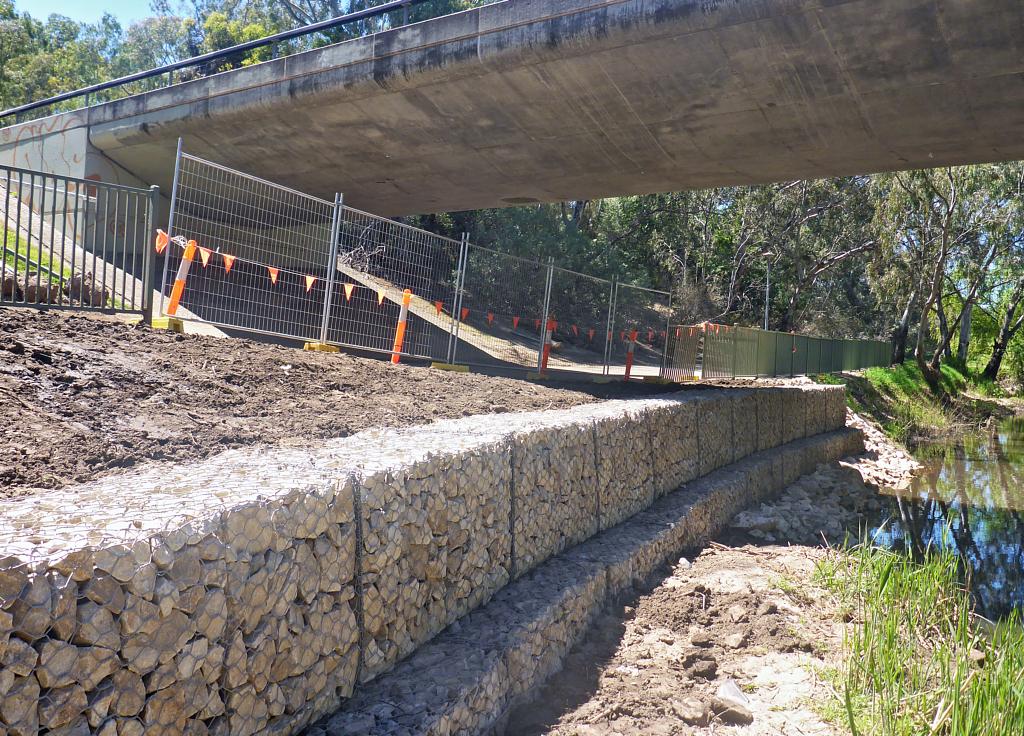

Recent years, we can always see the gabion basket. It is very common in the river, road side, bridge side, mountain slope, etc. The gabion basket from Skyhall Fence has other names like gabion box, gabion wall, gabion cage, stone cage,etc. Gabion basket is manufactured from 8×10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the Gabion is heavily Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm). The Gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter. Gabions shall be manufactured and shipped with all components mechanically connected at the production facility.

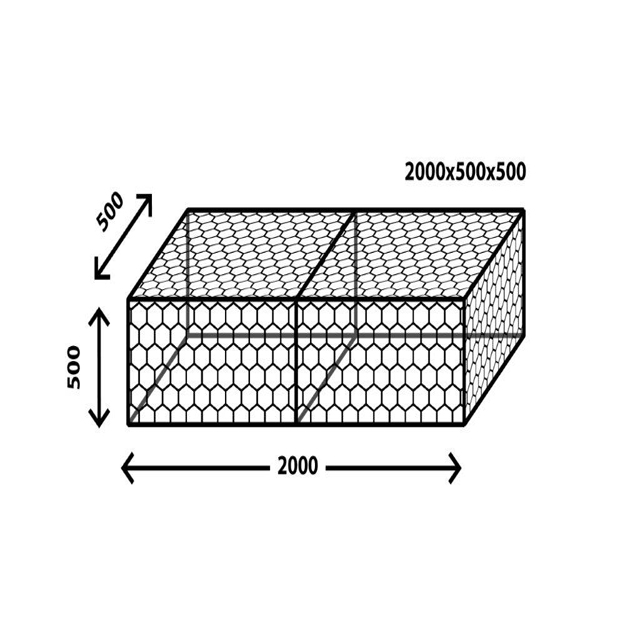

STANDARD GABION SIZES
(80 x 100 x 2.7mm)
| 1 x 1 x 1 | 1,5 x 1 x 1 |
| 2 x 1 x 1 | 3 x 1 x 1 |
| 4 x 1 x 1 | 2 x 0,5 x 0,5 |
| 2 x 1 x 0,5 | 3 x 1 x 0,5 |
| 4 x 1 x 0,5 | 6 x 2 x 0,5 |
Flood Control PVC Coated Wire Stone Gabion Cage:
We design and supply gabion boxes made of heavy hexagonal wire nettings
1.ISO 9001:2000
2.wire:galfan;galvanised:PVC coated
3.Mesh Size: 60 x 80mm, 80 X100 mm,80 X 120mm etc
4. Length:1~4m
5.Width: 0.5~1m
6. Deepth: 0.3~1m
7. Mesh Wire Dia: 2~4mm
8. Edge Wire Dia: 2.5~5mm
9. Lacing Wire Dia: 2.2mm(common)
10.Gabion sizes:2mx1mx1m,3mx1mx1m,4mx1mx1m,2mx1mx0.5m,4mx1mx0.5m.custom orders avaliable

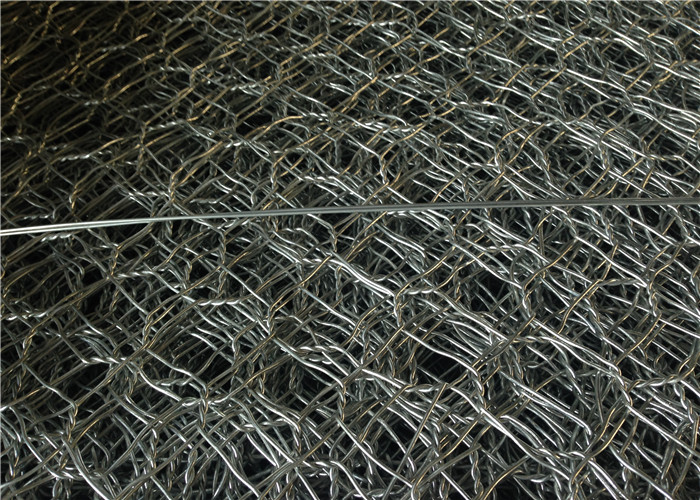

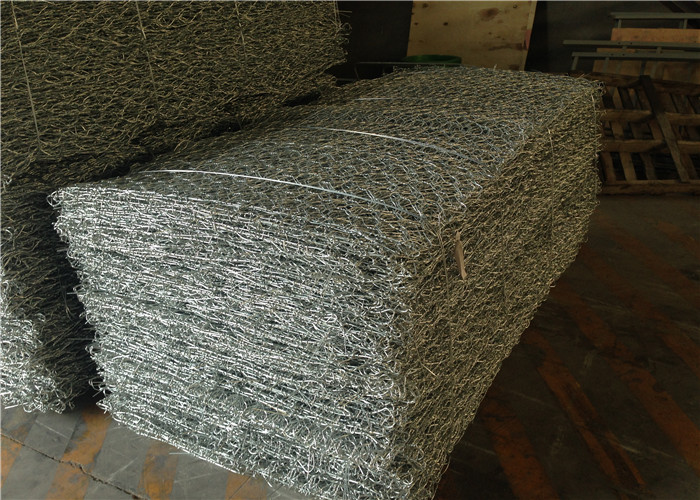

Gabions are wire containers made of hexagonal wire netting. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.
